NR1
The single-row roller slewing bearing in the untoothed standard series is fully packed with grease, protected by oil, and wrapped in a durable plastic coating. This configuration ensures optimal lubrication and protection against contaminants, making it suitable for demanding industrial applications. The grease-filled design minimizes maintenance requirements and ensures smooth operation over extended periods. The oil protection further enhances durability by preventing corrosion and wear, while the resistant plastic wrapping provides additional safeguarding against external elements. This combination of features makes the bearing reliable and robust, ideal for use in machinery such as cranes, excavators, and wind turbines where reliability and longevity are crucial.
QIBR

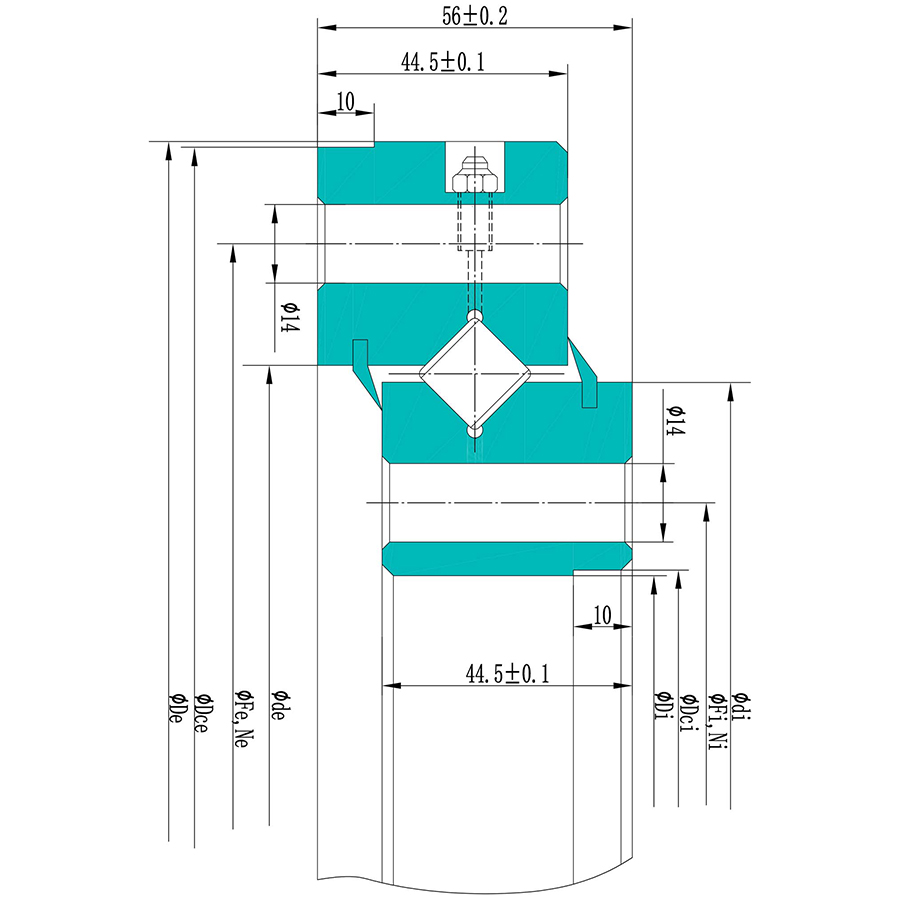

Model Selection
NO. | Product | Product Number | Weight | External bolt circle diameter (Fe) | Gear Type | Internal bolt circle diameter (Fi) | Number of bolt holes at outer ring (Ne) | Number of bolt holes at inner ring (Ni) |
---|---|---|---|---|---|---|---|---|
1 | NR1.14.0414.200-1PPN | 28kg | 460mm | No Gear | 368mm | 24mm | 24 | |
2 | NR1.14.0544.200-1PPN | 38kg | 590mm | No Gear | 498mm | 32mm | 32 | |
3 | NR1.14.0644.200-1PPN | 44kg | 690mm | No Gear | 598mm | 36mm | 36 | |
4 | NR1.14.0744.200-1PPN | 52kg | 790mm | No Gear | 698mm | 40mm | 40 | |
5 | NR1.14.0844.200-1PPN | 60kg | 890mm | No Gear | 798mm | 40mm | 40 | |
6 | NR1.14.0944.200-1PPN | 67kg | 990mm | No Gear | 898mm | 44mm | 44 | |
7 | NR1.14.1094.200-1PPN | 77kg | 1140mm | No Gear | 1048mm | 48mm | 48 | |
8 | NR1.14.0414.201-3PPN | 28kg | 460mm | No Gear | 368mm | 24mm | 24 | |
9 | NR1.14.0544.201-3PPN | 38kg | 590mm | No Gear | 498mm | 32mm | 32 | |
10 | NR1.14.0644.201-3PPN | 44kg | 690mm | No Gear | 598mm | 36mm | 36 | |
11 | NR1.14.0744.201-3PPN | 52kg | 790mm | No Gear | 698mm | 40mm | 40 | |
12 | NR1.14.0844.201-3PPN | 60kg | 890mm | No Gear | 798mm | 40mm | 40 | |
13 | NR1.14.0944.201-3PPN | 67kg | 990mm | No Gear | 898mm | 44mm | 44 | |
14 | NR1.14.1094.201-3PPN | 77kg | 1140mm | No Gear | 1048mm | 48mm | 48 | |
15 | NR1.20.1204.400-2PPN | 124kg | 1257mm | No Gear | 1151mm | 45mm | 45 | |
16 | NR1.20.1314.400-2PPN | 135kg | 1367mm | No Gear | 1261mm | 50mm | 50 | |
17 | NR1.20.1424.400-2PPN | 146kg | 1477mm | No Gear | 1371mm | 54mm | 54 | |
18 | NR1.20.1534.400-2PPN | 158kg | 1587mm | No Gear | 1481mm | 60mm | 60 | |
19 | NR1.20.1644.400-2PPN | 214kg | 1708mm | No Gear | 1580mm | 54mm | 54 | |
20 | NR1.20.1754.400-2PPN | 228kg | 1818mm | No Gear | 1690mm | 60mm | 60 | |
21 | NR1.20.1904.400-2PPN | 248kg | 1968mm | No Gear | 1840mm | 64mm | 64 | |
23 | NR1.14.0270.200-2PPN | 21kg | 320mm | No Gear | 220mm | 16 | 16 | |
24 | NR1.20.0307.400-2PPN | 26kg | 358mm | No Gear | 259mm | 24 | 28-1 | |
25 | NR1.25.0400.400-3PPN | 54kg |
